Measurement:
1) Electromechanical separation design: The magnetic induction and acquisition technology is adopted, and the mechanical part and the electrical part are separated to avoid the influence between the water circuit and the circuit.
2) Coded sampling technology: According to the collected measurement signal sequence, the direction of water flow can be identified, and the miscalculation caused by water pressure instability, impeller jitter and backwater is solved, and the measurement is more accurate.
2. Information inquiry
1) The management system or mobile phone can query the water consumption, water meter status, signal strength and other information at any time.
2) The water meter is designed with liquid crystal display. In addition to querying relevant information in the management system or mobile phone, the relevant information can also be queried on site.

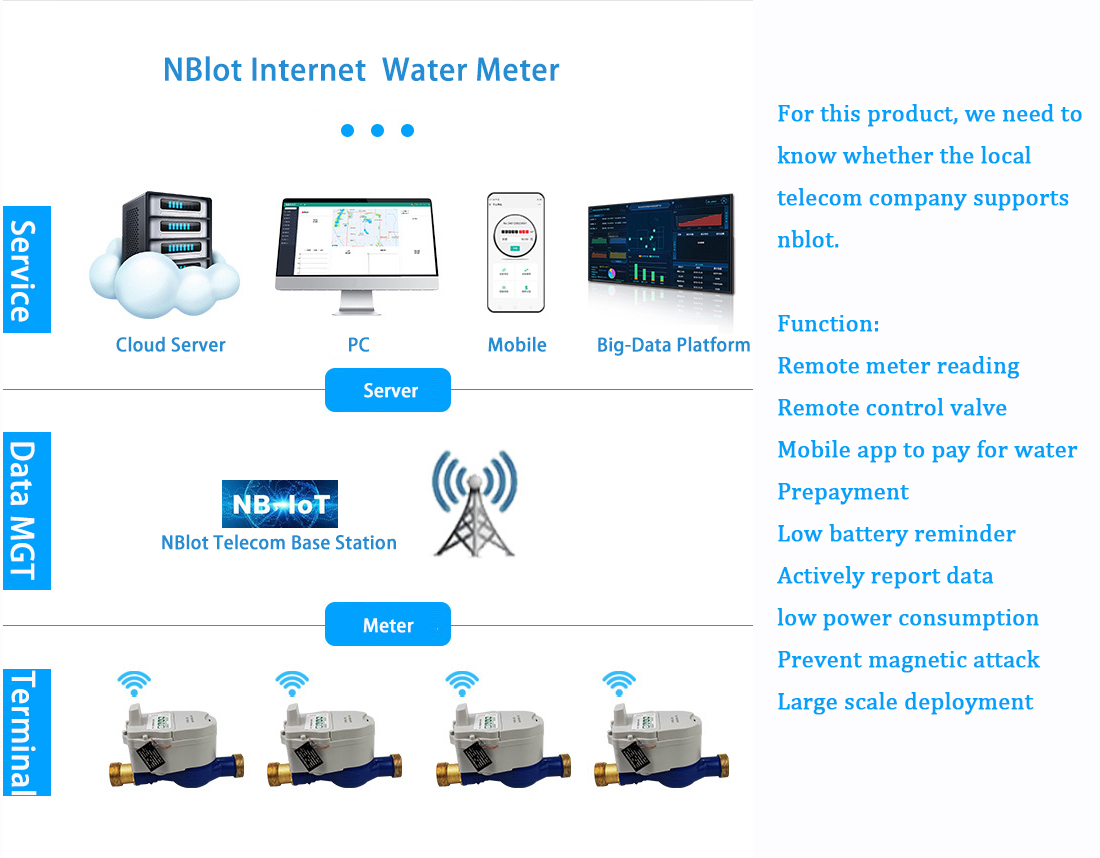

3. Active reporting and call response dual communication mechanism
1) Timing report: The wireless water meter periodically reports the water information and water meter working status. This mechanism can greatly save the power consumption of the wireless water meter.
2) The alarm information is automatically reported: the alarm message is immediately reported by the magnetic attack, the battery is under voltage or the battery is destroyed, and the alarm information is immediately reported.
3) Calling response: The system actively calls the water meter data and status, and can remotely control the water meter valve in real time to ensure the timeliness of response.
Due to the dual mechanism, it takes into account the advantages of real-time, low power consumption, real-time measurement and control.
1.2. Protection design
Fault alarm
Water meter battery undervoltage, battery is destroyed, cut off immediately alarm; water meter is magnetically dry
The disturbance and magnetic attack immediately alarm.
2.LoRa signal reliability
1) Adopt time division multiplexing + automatic avoidance mechanism. Avoid channel congestion and channel interference.
2) Professional circuit design, strong noise suppression; select materials, select high-precision, low-temperature drift devices to prevent electrical performance degradation over time and environmental changes.
3) Solve the wireless frequency offset problem and have strong fault tolerance.
1.3. Environmental adaptability
1. Waterproof and moisture proof design
With special potting material and special potting technology, the water is expressed in IP68 protection level and can be installed in almost any environment. The potting material is invariable at -30°C-70°C, does not crack, and does not become brittle. It fully satisfies the installation in water immersion and high humidity environment.
2. Anti-rust function
The water meter valve automatically switches every half month to prevent the valve from rusting.
1.4. Service life
1. The base case is made of copper shell, stainless steel ball valve, and the remote part is made of ABS plastic case. The electronic part is potted with special technology. The waterproof level is in accordance with the IP protection standard of the IP code standard, which ensures the water meter meets the service life requirement.
2. The remote water meter has a data storage function, and the power-down data is not lost.
3. Low power design
The ER18505 energy battery with a nominal capacity of 4000mAh, the water meter working for 6 years, the power consumption is less than 2000mAh, and it is not necessary to replace the battery in the whole life.
4. Battery Management:
Dynamically monitor the battery:
1. Precision measurement: Simultaneously measure the electromotive force, internal resistance and temperature, and measure the actual load capacity of the battery.
smart water meter
remote water meter
water flow meter
cold water meter
smart water flow meter
water smart meter
inline water meter
commercial water meter
outdoor water meter
domestic water meter
residential water flow meter
wireless water meter
house water meter
ic card prepaid water meter
brass water meter
water meter for house
remote water meter reader
external water flow meter
2 inch water meter
dry type water meter
portable water meter
prepaid energy meter using smart card
digital water flow meter
water meter digital display
intelligent water meter
residential water meter
prepaid water meters
digital water meter
woltman water meter
smart home water meter
electronic smart water meter
domestic water flow meter
digital water meter wireless
smart energy meter
water meter vertical installation
bulk water meter
dry dial water meter
sts prepaid water meter
electric water meter
electronic water meter
mechanical water meter
home water meter
3 water meter
water meter for home
inline water flow meter
household water meter
smart prepayment meter
water meter in house
pulse water meter
1 inch water meter
|
|

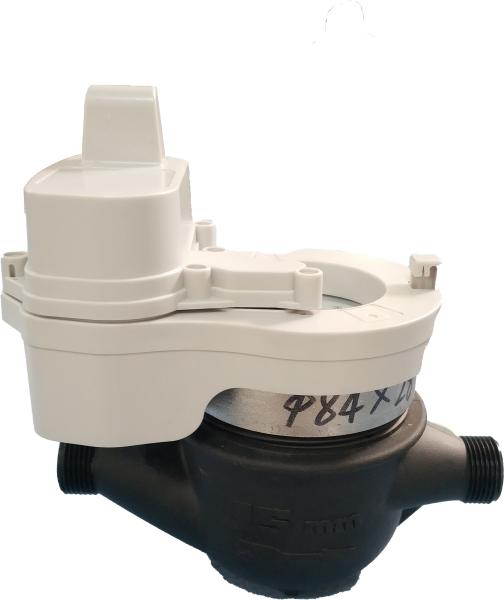

Wireless Water Meter with Lora/NB-LOT/CAT Images
|
