IC Card Prepaid Residential Water Meter

Brass prepaid residential water meter with card
Our advantages:
1.We are professional water meter manufacture in China since 2005.
2.covers an area 43,500 square meters,constructions areas 28,580 square meters.
3.1,300,000 units per year production,40% export.
4.Annual sales approx $30,000,000-$36,000,000.
5.productions ,sales turn over and export status:experences to Southeast Asia,Asia India,Vietnam, Myanmar, Thaliand, Malaysia, Cambodia, Singaporp, Pilipinas,Saudi Arabia,Pakistan,Bangladesh,Nepal,Kuwait, South America: Peru, Uruguay, Argentina,Brasil,Ecuador,North America:Mexico,Canada,America, Europe:Russia,British,Spain,Ukraine,Iceland
6.Nearly 300 employees include professional engineer and techcian .
7.Our water meters passed through ISO 9001,ISO14001,ISO18001 certificate and ISO4064 standard,also tested by SGS .
8.Types of water meter :IC/RF card water meter,AMR water meter,Multi jet water meter,single jet water meter,wolumetric water meter,woltman water meter.

Brief Introduction:
IC Card Water Meter is developed from dry or wet-type basic water meter, composed of microchip module, controlling valves, LED display, IC Card & reader, and accounting management system.
1. The figure of water volume is displayed directly on screen
2. The water using could be controlled as prepaid method

Features:
Multi jet, dry or wet dial; Brass or iron body, electronic meter;
Battery life is more than 6 years.
Accurate measure due to anti-jamming and magnetic features based on non-magnetic sample patents technology

	Item	Functions
Display	LCD screen	Display status of input water volume, surplus water volume, total volume, payment, closed, open, error, low battery, under attack
	Digital show	maximum total water volume9999.9m3
	Water supply control	Auto closes the valve when water volume is little, and open when inserting new prepaid card.
Auto control	Low battery alarm	Auto closes the valve when battery is low, prompt to change the battery.
	Hardware security	Auto closes the valve when the pulse line is cut off, and alarm under attack, which must repaired by administrator.
	Anti magnetic attack	Auto closes the valve when strong magnetic close to the meter, need inserting card to reopen the meter.
	Power off detection	Detecting the circuit after power up to check normal or not.
	Waterproof	Reading card as normal even the meter part is in water.
	Auto maintenance	Automatic switch valve for discharge once a month.
	Water quota	You can set a limit to use water. Unable to input water volume more than limit.
	Zero-crossing solution	User information would feedback to the superior software for processing when the valve failure to close in zero-crossing. Extra water volume will be record.
Working features	Moisture-proof pulse line	The pulse output is not affected by moisture, data will record as normal.
	Multi-application card	The first inserting of card in a new water meter will write in Card No. User ID, Water Volume. A card would serve in a total of 4 set of cold water meter, hot water meter, heat meter and pure-water meter at the same time.
	Data Recovery	When the meter is damaged, please insert the read-in card to collect user data and transfer data by inserting to a new meter.
	Initialization	Remove all information in the meter by inserting Initialization card, and set the starting line of water meter.
	Control card	When the meter break down, please insert control card to detect fault or to force the valve open.
	Card Reissue	You can register a new card with original data if lost the user card.

Technical Data:

Model (DN)	15D	20D	25D
Overload Flow Qmax(m3/h)	3	5	7
Normal Flow Qn(m3/h)	1.5	2.5	3.5
Transitional Flow Qt(m3/h)	0.12	0.2	0.28
Min.Flow Qmin(m3/h)	0.03	0.05	0.07
Technical Standards	ISO4064, GB/T778, JB/T8802, JJG686, CJ/T133
Valve Life	≥5,000 times
IC Card Life	≥100,000 times
Min.Reading	0.0001 m3
Max.Reading	99999 m3
Power Supply	3.6V lithium battery, life≥6 years
Security	Unique Card/Meter
IC Card Life	≥ 100000 times
Static Working Current(uA)	≤6
Error Qmin to Qt	≤±5%
Error Qt to Qmax	≤±2%
Working Condition	Indoor using, relative humidity ≤93%, Cold water Meter ≤40°C,Hot water meter≤90°C, Water quality conforms to the National tap water standard

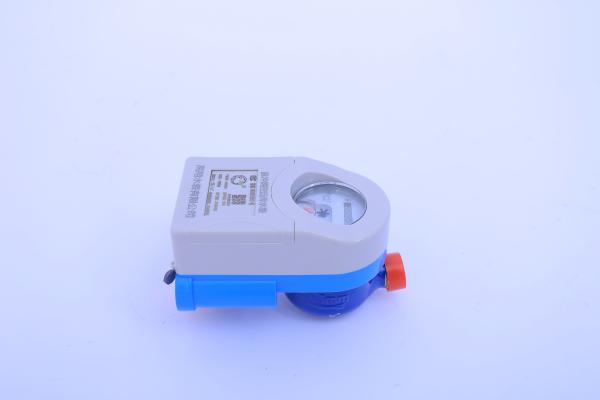

IC Card Prepaid Residential Water Meter Images
